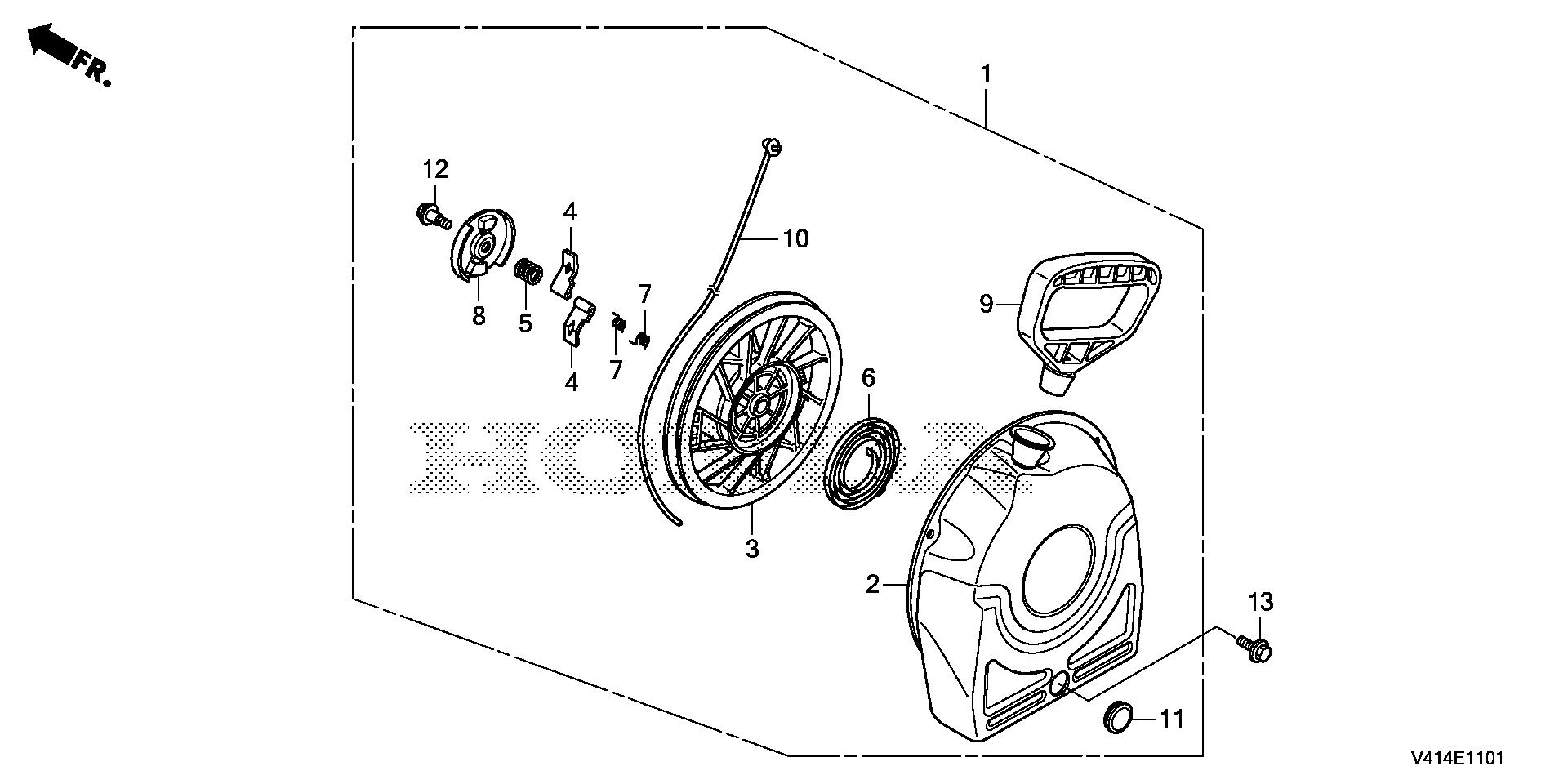

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
28400-Z1D-307
Description
STARTER ASSY., RECOIL (COO)(FOR U.S.A.) (FRAME NO.)
Serial Range
1000001 - 1019289
Qty
Price
$48.96

Ref No
1
Part Number
28400-Z1D-G41
Description
STARTER ASSY., RECOIL (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$48.96

Ref No
2
Part Number
28410-Z1D-G41
Description
CASE, RECOIL STARTER (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$60.52

Ref No
2
Part Number
28410-Z1D-H81
Description
CASE, RECOIL STARTER (FRAME NO.)
Serial Range
1000001 - 1019289
Qty
Price
$195.94

Ref No
3
Part Number
28421-Z1D-G41
Description
PULLEY, RECOIL STARTER (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$30.72

Ref No
3
Part Number
28421-Z1D-H81
Description
PULLEY, RECOIL STARTER (FRAME NO.)
Serial Range
1000001 - 1019289
Qty
Price
$35.92

Ref No
4
Part Number
28422-Z1D-G41
Description
RATCHET (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$14.04

Ref No
4
Part Number
28422-Z1D-H81
Description
RATCHET (FRAME NO.)
Serial Range
1000001 - 1019289
Qty
Price
$7.96

Ref No
5
Part Number
28441-Z1D-G41
Description
SPRING, FRICTION (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$13.92

Ref No
5
Part Number
28441-Z1D-H81
Description
SPRING, FRICTION (FRAME NO.)
Serial Range
1000001 - 1019289
Qty
Price
$25.08

Ref No
6
Part Number
28442-Z1D-G41
Description
SPRING, STARTER RETURN (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$16.36

Ref No
6
Part Number
28442-Z1D-H81
Description
SPRING, STARTER RETURN (FRAME NO.) (NOT AVAILABLE)
Serial Range
1000001 - 1019289
Qty
Price
$14.84

Ref No
7
Part Number
28443-Z1D-G41
Description
SPRING, RATCHET (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$13.96

Ref No
7
Part Number
28443-Z1D-H81
Description
SPRING, RATCHET (FRAME NO.)
Serial Range
1000001 - 1019289
Qty
Price
$32.58

Ref No
8
Part Number
28444-Z1D-G41
Description
RETAINER, SPRING (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$48.04

Ref No
8
Part Number
28444-Z1D-H81
Description
RETAINER, SPRING (FRAME NO.)
Serial Range
1000001 - 1019289
Qty
Price
$49.48

Ref No
9
Part Number
28461-Z1D-G41
Description
GRIP, STARTER (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$15.88

Ref No
9
Part Number
28461-Z1D-H81
Description
GRIP, STARTER (FRAME NO.) (NA USE ALT:28461-ZE2-H22)
Serial Range
1000001 - 1019289
Qty
Price
$4.84

Ref No
10
Part Number
28462-Z1C-M01
Description
ROPE, RECOIL STARTER (FRAME NO.)
Serial Range
1000001 - 1019289
Qty
Price
$6.96

Ref No
10
Part Number
28462-Z1D-G41
Description
ROPE, RECOIL STARTER (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$15.52

Ref No
11
Part Number
28464-Z1D-G41
Description
GROMMET (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$14.40

Ref No
11
Part Number
28464-Z1D-M01
Description
GROMMET (FRAME NO.)
Serial Range
1000001 - 1019289
Qty
Price
$5.80

Ref No
12
Part Number
90004-Z1D-G41
Description
SCREW, CENTER (FRAME NO.)
Serial Range
1019290 - 9999999
Qty
Price
$14.04

Ref No
12
Part Number
90004-Z1D-H81
Description
SCREW, CENTER (FRAME NO.)
Serial Range
1000001 - 1019289
Qty
Price
$47.70

Ref No
13
Part Number
95701-06010-00
Description
BOLT, FLANGE (6X10)
Serial Range
1000001 - 9999999
Qty
Price
$1.10
