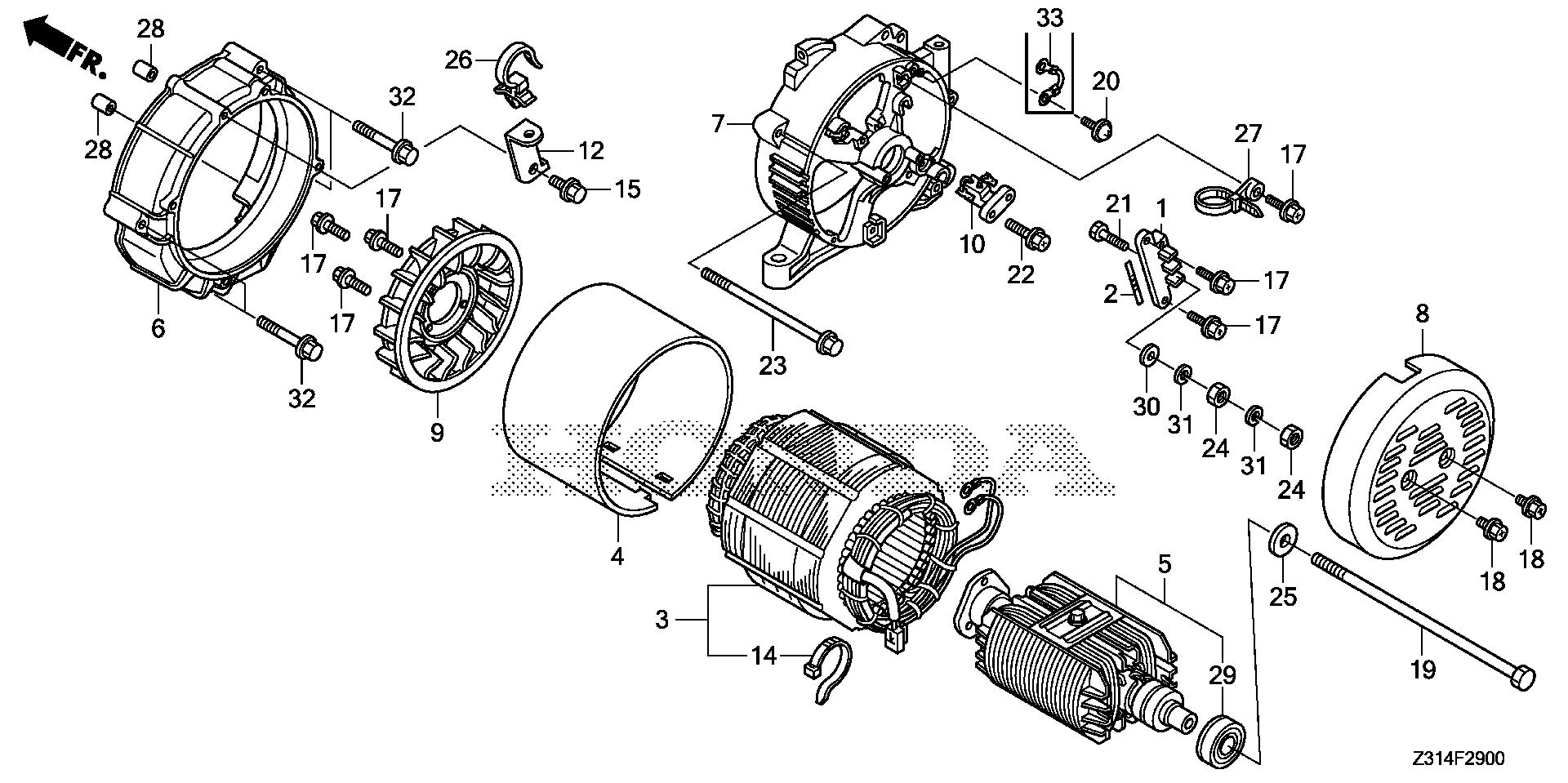

Generators EG EG5000 EG5000CL AT1 EBEC-1000001-1499999 ROTOR@STATOR - Fremont Ace Hardware and Garden Center

Ref No
Part Number
Description
Serial Range
Qty
Price

Ref No
1
Part Number
31118-Z22-000
Description
TERMINAL, VOLT CHANGE
Serial Range
1000001 - 9999999
Qty
Price
$20.88

Ref No
2
Part Number
31119-Z18-D20
Description
MARK, VOLT
Serial Range
1000001 - 9999999
Qty
Price
$2.46

Ref No
3
Part Number
31120-Z31-S30
Description
STATOR ASSY.
Serial Range
1000001 - 9999999
Qty
Price
$880.68

Ref No
4
Part Number
31127-Z31-000ZA
Description
COVER, STATOR *NH105* (MAT BLACK)
Serial Range
1000001 - 9999999
Qty
Price
$28.80

Ref No
5
Part Number
31130-Z31-000
Description
ROTOR
Serial Range
1000001 - 9999999
Qty
Price
$487.48

Ref No
6
Part Number
31161-Z30-000
Description
HOUSING, FR.
Serial Range
1000001 - 9999999
Qty
Price
$96.74

Ref No
7
Part Number
31171-Z22-000
Description
HOUSING, RR.
Serial Range
1000001 - 9999999
Qty
Price
$150.34

Ref No
8
Part Number
31186-Z22-000ZA
Description
COVER, GENERATOR END *NH105* (MAT BLACK)
Serial Range
1000001 - 9999999
Qty
Price
$53.34

Ref No
9
Part Number
31190-Z30-000
Description
FAN, GENERATOR COOLING
Serial Range
1000001 - 9999999
Qty
Price
$18.60

Ref No
10
Part Number
31295-Z30-000
Description
BRUSH ASSY.
Serial Range
1000001 - 9999999
Qty
Price
$18.10

Ref No
12
Part Number
32103-Z30-000
Description
BRACKET, WIRE HARNESS CLIP
Serial Range
1000001 - 9999999
Qty
Price
$5.98

Ref No
14
Part Number
32903-ZC8-N01
Description
TIE, CABLE (C)
Serial Range
1000001 - 9999999
Qty
Price
$1.34

Ref No
15
Part Number
90013-883-000
Description
BOLT, FLANGE (6X12) (CT200)
Serial Range
1000001 - 9999999
Qty
Price
$1.46

Ref No
17
Part Number
90032-875-000
Description
SCREW, TAPPING (5X14)
Serial Range
1000001 - 9999999
Qty
Price
$2.86

Ref No
18
Part Number
90101-Z18-000
Description
SCREW, TAPPING (5X12)
Serial Range
1000001 - 9999999
Qty
Price
$1.24

Ref No
19
Part Number
90101-Z31-000
Description
BOLT, HEX. (10X237)
Serial Range
1000001 - 9999999
Qty
Price
$9.18

Ref No
20
Part Number
90102-Z21-000
Description
SCREW, PAN (5X12)
Serial Range
1000001 - 9999999
Qty
Price
$1.48

Ref No
21
Part Number
90102-Z22-000
Description
BOLT, HEX. (5X20)
Serial Range
1000001 - 9999999
Qty
Price
$1.54

Ref No
22
Part Number
90131-Z30-000
Description
SCREW, TAPPING (5X18)
Serial Range
1000001 - 9999999
Qty
Price
$2.82

Ref No
23
Part Number
90157-Z31-000
Description
BOLT, FLANGE (6X147)
Serial Range
1000001 - 9999999
Qty
Price
$4.66

Ref No
24
Part Number
90301-Z22-000
Description
NUT, HEX. (5MM)
Serial Range
1000001 - 9999999
Qty
Price
$0.98

Ref No
25
Part Number
90504-ZA0-000
Description
WASHER (10.5MM)
Serial Range
1000001 - 9999999
Qty
Price
$4.48

Ref No
26
Part Number
90672-Z22-003
Description
CABLE, STRAP
Serial Range
1000001 - 9999999
Qty
Price
$2.90

Ref No
27
Part Number
90673-Z22-000
Description
TIE, CABLE
Serial Range
1000001 - 9999999
Qty
Price
$3.64

Ref No
28
Part Number
90701-Z7E-000
Description
PIN, DOWEL (8X12)
Serial Range
1000001 - 9999999
Qty
Price
$2.00

Ref No
29
Part Number
91051-ZB4-003
Description
BEARING ASSY. (6204)
Serial Range
1000001 - 9999999
Qty
Price
$24.28

Ref No
30
Part Number
94101-05800
Description
WASHER, PLAIN (5MM)
Serial Range
1000001 - 9999999
Qty
Price
$0.92

Ref No
31
Part Number
94111-05800
Description
WASHER, SPRING (5MM)
Serial Range
1000001 - 9999999
Qty
Price
$1.08

Ref No
32
Part Number
95701-08060-00
Description
BOLT, FLANGE (8X60)
Serial Range
1000001 - 9999999
Qty
Price
$1.42
